Product Overview - Raman Fiber Optic Probes

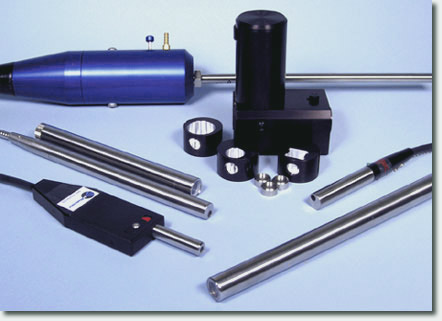

Process RamanProbe (with optional purge shroud) RamanProbe II Low-cost RamanProbe Original RamanProbe Reaction  RamanProbe Compact Sample HolderInPhotonics is the originator of the RamanProbeTM optical probehead offering efficient signal collection and complete attenuation of the excitation laser line. The coaxial, two-fiber design (U.S. Patent 5,122,127) uses micro-optics for precise beam steering, optical filtering, and signal collection. Our probes all provide filtering that reduces the laser signal far below the intensity of typical Raman bands. This results in clean spectra without the Rayleigh "tailing" into the low-frequency region, and avoids saturation of the detector on an unwanted laser line. Only our Raman probe can provide such filtering in a compact, flexible probehead that has grown into a complete product line for research, analytical and industrial applications.

All of our probes are available for six different excitation wavelengths: 514 (Ar+), 532 (DPSS), 633 (He-Ne), 670 (diode), 785 (diode) and 830 (diode) nm. Since we provide complete products with integrated fiber optics, our probes are available with fiber sizes ranging from 50 µm to 500 µm to best match your laser output and spectrograph input. Additional capabilities, like imaging and polarization detecting are also available. A comparison of our basic products is provided in the accompanying table. Custom probe configurations are available upon request. Please consult with our experts to find the best probe for your instrumentation and application.

Note: The 1064 nm probes for FT-Raman spectroscopy are similar to the RamanProbe and Reaction RamanProbe models. Please consult the individual specification sheets for our 1064 nm products.

Product Comparison - Laboratory Probes

  RamanProbe RamanProbe II

Low-cost RamanProbe

General description The original patented probe: focussed, non-immersible, compact size, 108 filtering at laser line Focussed probe with liquid-tight immersion sleeve (sleeve can be removed for non-immersion use). 108 filtering at laser line Low cost probe for laboratory applications (non-immersible), 106 filtering at laser line (adequate when laser is not on detector)
Dimensions Cylindrical probe, 0.5" (13 mm) diameter, 4" (101 mm) length Cylindrical probe, 5/8" (16 mm) diameter with immersion sleeve, 8" (203 mm) length Rectangular-shaped probe, 4.2" x 1.5" x 0.5" (107 x 38 x 12.7 mm ), with 1.5" long (38 mm) stainless-steel probe tip
Immersion length N/A (not immersible) 6" N/A (not immersible)
Construction, window material(s) and sealing method Stainless-steel body, no window Stainless-steel probe body and immersion sleeve with sapphire window with PTFE o-ring Anodized aluminum probe body with stainless-steel probe tip, no window
Working distance 5 mm (standard); 7.5, or 10 mm (optional) User-adjustable between 4 and 1 mm 7.5 mm (standard); 5 or 10 mm (optional)

Excitation fiber (from laser source) and collection fiber (to spectrograph), cable type and length



Standard fiber configuration:

100 µm, low-OH fiber (excitation) and 200 µm, low-OH fiber (collection), polymer-encased, 5 m length (std.)

Optional fiber sizes: 50 to 500 µm

Optional cable lengths: up to 200 m

Standard fiber configuration:

100 µm, low-OH fiber (excitation) and 200 µm, low-OH fiber (collection), steel-encased, 5 m length (std.)

Optional fiber sizes: 50 to 500 µm

Optional cable lengths: up to 200 m

100µm, low-OH fiber (excitation) and 200 µm, low-OH fiber (collection), polymer-encased, 1.5 m length (std.)



Fiber optic connectors FC connectors (standard), SMA connectors (optional) FC connectors (standard), SMA connectors (optional) FC connectors (standard), SMA connectors (optional)
Maximum temperature 80oC 200oC 80oC
Maximum pressure N/A (not sealed)

Standard immersion sleeve is sealed but not designed for high pressure use

(See our industrial probe models for high-pressure applications)

N/A (not sealed)
Compatible with accessories for routine sampling Yes Yes, with immersion sleeve removed Yes
Excitation wavelength 514, 532, 633, 670, 785, or 830 nm 514, 532, 633, 670, 785, or 830 nm 514, 532, 633, 785, or 830 nm
Other options Side-viewing, longer probe length, high temperature versions Other immersion sleeve materials available, quartz window (recommended for 633 and 670 nm excitation)



Retail Price (USD)# $ 4,950.00 $ 6,745.00 $ 2,950.00

#Prices are FOB (EXW) Norwood, MA and do not include shipping, taxes or international duties. All prices and specifications are subject to change without notice.



Product Comparison - Industrial Probes



Reaction RamanProbe (stainless)

Reaction RamanProbe (Hastelloy C) Process RamanProbe
General description Industrial probe with pressure-resistant sleeve for process monitoring applications. Industrial probe with pressure-resistant sleeve for process monitoring applications. Industrial probe with safety-shutterand temperature/pressure-resistant extension tube. Probe optics can be used with multiple extension tubes, or for routine applications with lens insert.
Outer diameter 5/8" (16 mm) with immersion sleeve 5/8" (16 mm) with immersion sleeve 3/8" (9.5 mm) extension tube
Overall probe length 13.75" (350 mm) standard or 17.75" (450 mm) optional, longer lengths upon request 13.75" (350 mm) standard or 17.75" (450 mm) optional, longer lengths upon request approx. 17" (430 mm)
Immersion length 13" (330 mm) standard, 17" (430 mm) optional 13" (330 mm) standard, 17" (430 mm) optional approx. 9" (230 mm)
Construction, window material(s) and sealing method 316 Stainless-steel probe body and immersion sleeve with AR-coated sapphire window (welded seal with Kalrez o-ring). 316 Stainless-steel probe body and Hastelloy C immersion sleeve with AR-coated sapphire window (welded seal with gold gasket). 316 Stainless-steel with sapphire window (gold seal, compression weld). Flat window with lens or integrated window/lens available.
Working distance User-adjustable between 4 and 0 mm User-adjustable between 4 and 0 mm Factory set, select from 4 and <1 mm

Excitation fiber (from laser source) and collection fiber (to spectrograph), cable type and length



Standard fiber configuration:

100 µm, low-OH fiber (excitation) and 200 µm, low-OH fiber (collection), steel-encased, 5 m length (std.)

Optional fiber sizes: 50 to 500 µm

Optional cable lengths: up to 200 m

Standard fiber configuration:

100 µm, low-OH fiber (excitation) and 200 µm, low-OH fiber (collection), steel-encased, 5 m length (std.)

Optional fiber sizes: 50 to 500 µm

Optional cable lengths: up to 200 m

100 µm, low-OH fiber (excitation) and 200 µm, low-OH fiber (collection), steel-encased, 5 m (std.), 50 m as option (extension cable available if longer length required)

OR

50 µm, low-OH fiber (excitation) and 100 µm, low-OH fiber (collection), steel-encased, 5 m length (std.), 50 m as option (extension cable available if longer length required)

Fiber optic connectors Choice of FC or SMA connectors on both fibers Choice of FC or SMA connectors on both fibers Choice of FC or SMA connectors on both fibers
Maximum temperature 200oC 200oC 500oC (external optics must be maintained below 200oC
Maximum pressure 1500 psi 1500 psi 3000 psi
Compatible with accessories for routine sampling Yes, with immersion sleeve removed Yes, with immersion sleeve removed No, but lens insert provided for routine probe use
Excitation wavelength 514, 532, 633, 670, 785, or 830 nm 514, 532, 633, 670, 785, or 830 nm 514, 532, 633, 670, 785, or 830 nm
Other options

Quartz window (recommended for 633 and 670 nm excitation) with lower pressure rating

PVC overlay on steel cable



Extruder probe tip with Dynisco® fitting.

Purgeable housing to seal external optics and enable cooling for very high temperature monitoring.

AR-coating on window (for use below 200oC)

PVC overlay on steel cable

Retail Price (USD)# $ 8,200.00 $ 9,200.00 $ 10,200.00

#Prices are FOB (EXW) Norwood, MA and do not include shipping, taxes or international duties. All prices and specifications are subject to change without notice.

Product Comparison - Specialized Probes



Imaging RamanProbe

Polarization RamanProbe
General description Imaging probe with a video camera to facilitate alignment of the sampling location An additional polarization channel for each probe head to enable polarization Raman spectra
Retail Price (USD)# call call

Supporting Product Information (Downloadable in PDF format)

RamanProbe Specification Sheet
RamanProbe II Specification Sheet
Process RamanProbe Specification Sheet

Reaction RamanProbe Specification Sheet

Low Cost RamanProbe Specification Sheet
Imaging RamanProbe Specification Sheet

Technical Note #13: Background Filtering in Raman Fiber Optic Sampling Probes
Ten Reasons to Select the RamanProbe for Industrial Applications
